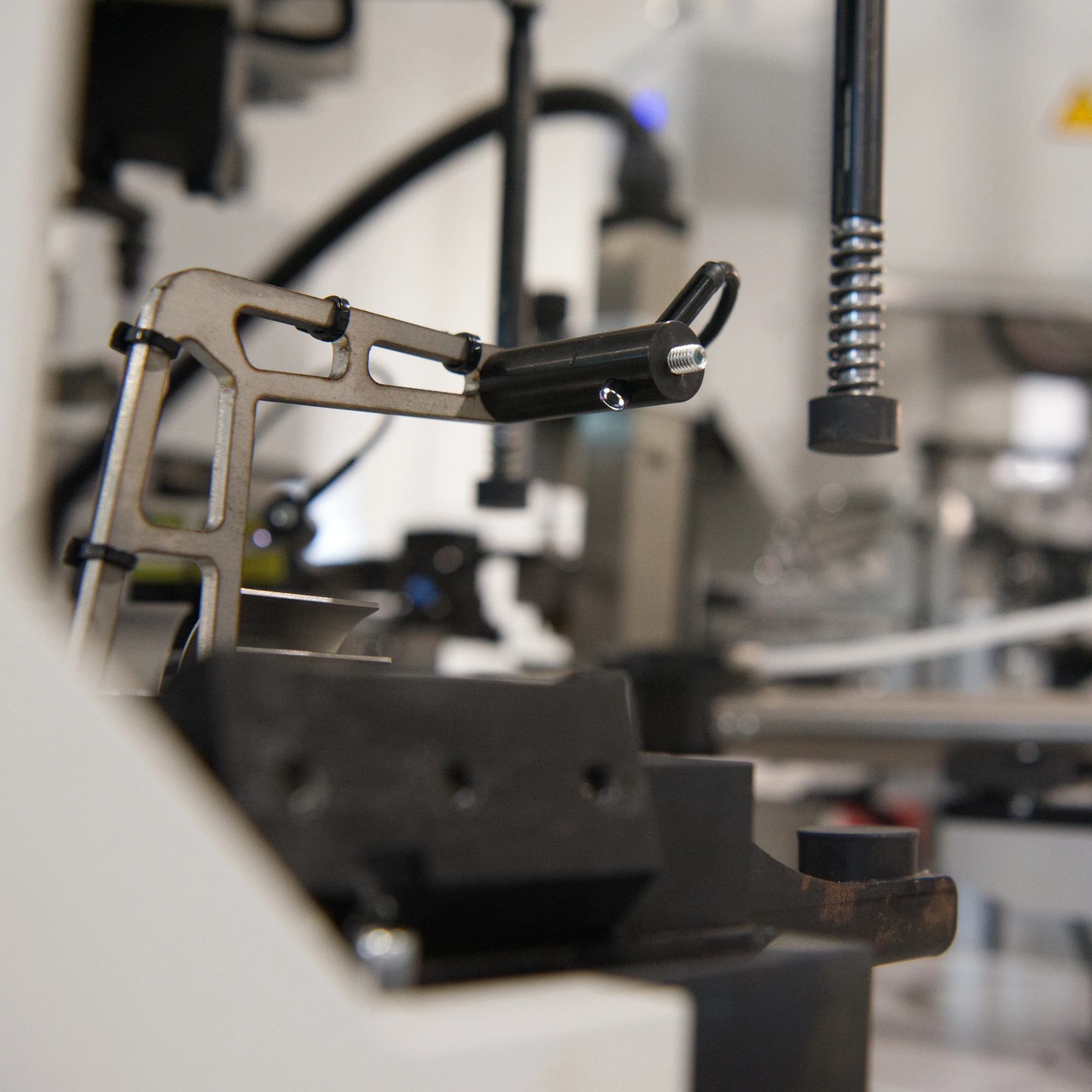

The AM500 vantage is a cut, strip and crimp machine that can be equipped with up to six processing stations. On
required the seventh station is expected. Machine of simple, ergonomic and technological conception
advanced. It is aesthetically very pleasant due to its particular Wirmec Italian Style design
CHARACTERISTICS:
• CE compliance
• Rollers feeder with special coating
• Programmable cutting head;
• Wire straighten unit with adjustable positioning;
• Wire guide Ø1,3, Ø1,7, Ø2, Ø2,5, Ø3, Ø4-Ø5,5;
• Maintenance tool kit;
• Safety guard;
• Scarps box;
• Consolle with storage compartment;
• Monitor PC 21”
• Vision Interface in local language;
• Wi-Fi, Ethernet and USB connection
• Steel frame in Italian style
• Instruction and operator manuals in english
required the seventh station is expected. Machine of simple, ergonomic and technological conception
advanced. It is aesthetically very pleasant due to its particular Wirmec Italian Style design
CHARACTERISTICS:
• CE compliance
• Rollers feeder with special coating
• Programmable cutting head;
• Wire straighten unit with adjustable positioning;
• Wire guide Ø1,3, Ø1,7, Ø2, Ø2,5, Ø3, Ø4-Ø5,5;
• Maintenance tool kit;
• Safety guard;
• Scarps box;
• Consolle with storage compartment;
• Monitor PC 21”
• Vision Interface in local language;
• Wi-Fi, Ethernet and USB connection
• Steel frame in Italian style
• Instruction and operator manuals in english
• Wire cross section: 0,13—6mm² (26—10AWG)
• Wire length: 42mm crimp side 1
55mm crimp both side (option<55mm with special jaws)
• Accuracy: ±(0.2% +1mm)
• Strip Length: 0.1— 15mm (optional >15)
• Speed feeder: 8.5m/s
• Power supply: 400V 50Hz—9KVA
• Air supply: 6-7 bar
• Air consumption: 55l/min
• Weight: ~1100Kg base machine
• Noise: <75dB(without presses)
• Dimensions: W3700 x D1800 x H2000mm
• Wire length: 42mm crimp side 1
55mm crimp both side (option<55mm with special jaws)
• Accuracy: ±(0.2% +1mm)
• Strip Length: 0.1— 15mm (optional >15)
• Speed feeder: 8.5m/s
• Power supply: 400V 50Hz—9KVA
• Air supply: 6-7 bar
• Air consumption: 55l/min
• Weight: ~1100Kg base machine
• Noise: <75dB(without presses)
• Dimensions: W3700 x D1800 x H2000mm
• Electronic crimping height adjustment;
• Vision interface in local language;
• Wire setup videocamera on crimping press;
• Integrated pull test;
• Integrated crimp height gauge;
• Digital microscope;
• Touchscreen monitor;
• Paper wind;
• End reel terminals detection and anti jam system;
• Conveyour belt prolung;
• Belt drive kit;
• Working area led lighted;
• RFID setup machine;
• Interchangeable quick tool;
• Vision interface in local language;
• Wire setup videocamera on crimping press;
• Integrated pull test;
• Integrated crimp height gauge;
• Digital microscope;
• Touchscreen monitor;
• Paper wind;
• End reel terminals detection and anti jam system;
• Conveyour belt prolung;
• Belt drive kit;
• Working area led lighted;
• RFID setup machine;
• Interchangeable quick tool;
